Repair mortar REFLOOR® CT-PR2

Refloor® CT-PR2 repair mortar is a cement-based mix for local repair of concrete 5–120 mm deep on horizontal and vertical surfaces.

Engineering support from estimation to commissioning

Warehouse in Tashkent, Muynakskaya St., 135. Shipping across Uzbekistan and Tajikistan.

Repair mortar REFLOOR® CT-PR2
Repair mortar REFLOOR® CT-PR2

Loads

Medium-to-heavy and heavy loads, intensive wheeled traffic

Facilities

Warehouses, production, parking facilities, clean areas

Coating

Seamless, dust-free, easy to clean, chemical-resistant

Description

What makes the system different and what tasks it is typically chosen for.

Refloor® CT-PR2 repair mortar is a powder mixture consisting of Portland cement, hydrated lime, graded quartz aggregate and special modifying additives that increase adhesion, water-retention capacity, water impermeability and vapor permeability.

Key features:

  • high adhesion to the substrate;
  • no shrinkage;
  • durability;
  • fast and simple application;
  • suitable for both interior and exterior use;
  • consistent quality — manufactured off-site;
  • final strength is reached in 28 days; the surface can be treated after 12–16 hours.

Intended use

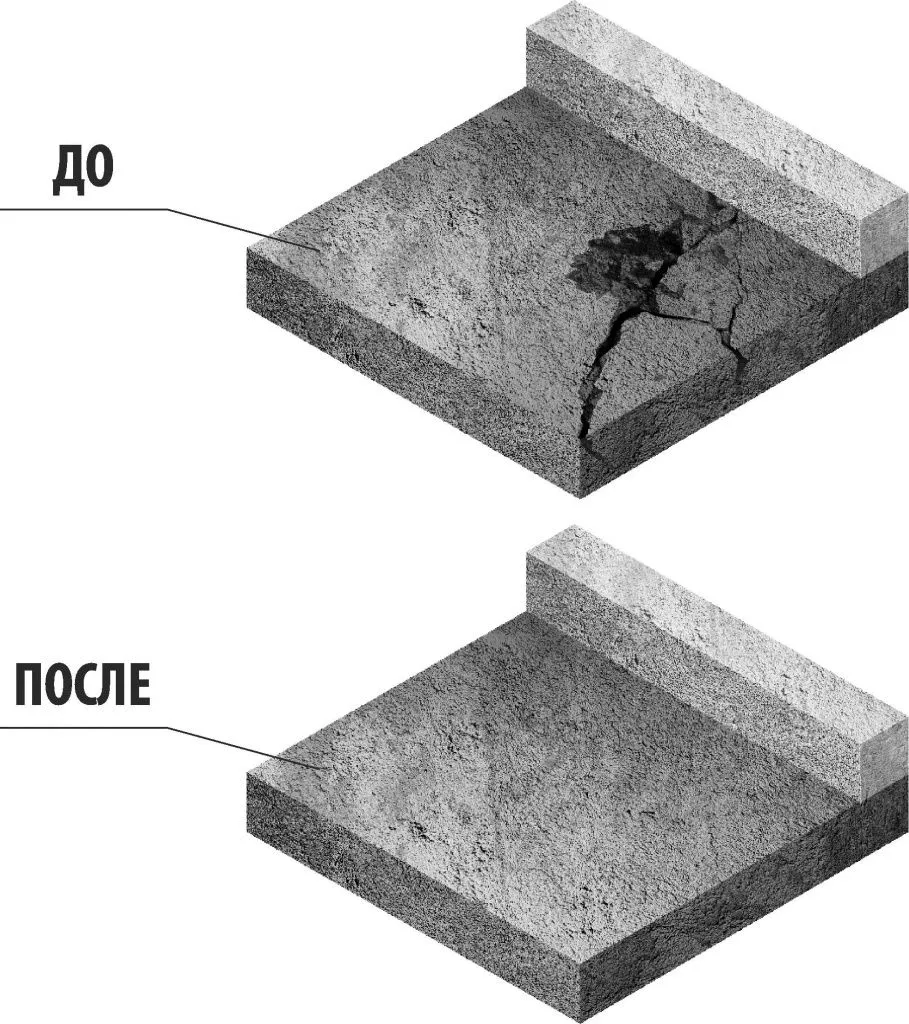

Designed for local repair of horizontal and vertical concrete surfaces, including after initial repair, at thicknesses from 5 to 120 mm and more when coarse aggregate is added.

Application

The mortar can be applied both manually and by machine. For manual application, use steel trowels, spatulas or floats. Apply the mix onto a pre-wetted surface, periodically compacting and smoothing it. If the depth of the defect does not exceed 60 mm, the repair mortar can be applied in a single layer. For depths greater than 60 mm, layered application is recommended, with each subsequent layer applied after the previous one has set. Before applying each new layer, the surface of the previous layer must be moistened. When a layer thicker than 120 mm is required, washed gravel (crushed stone) must be added in an amount up to 30% of the dry mix mass. For machine application, plastering machines of any brand can be used.

Consumption:

  • at 1 mm thickness per 1 m2 — 1,5 kg;
  • at 5 mm thickness per 1 m2 — 7,5 kg;
  • at 10 mm thickness per 1 m2 — 15,0 kg.

Water consumption per 25 kg bag: 3,25 L.

Workability time: 60 minutes at 20±2°C.

Change in moisture content and compressive strength of Refloor® CT-PR2

Curing time at 20°C (5°C) Moisture, wt. % at 20°C (5°C) Compressive strength, MPa at 20°C (5°C)
1 day 5,48 (8,58) 40,00 (35,00)
3 days 2,75 (4,90) 47,22 (39,29)
7 days 1,73 (3,71) 51,13 (43,90)
28 days 1,00 (3,06) 68,00 (58,00)

Technical specifications

Material parameters and substrate requirements (TDS/passport).

Strength development period 28 days
Material consumption per 1 m² 1,5 kg at 1 mm thickness; 7,5 kg at 5 mm; 15,0 kg at 10 mm
Tensile strength after 28 days min. 8,7 MPa
Bulk density of the mix 1529 kg/m³
Water consumption per 25 kg of mix 3,25 L
Working time at 20±2°C not more than 60 minutes
Setting time at 20±2°C 20 hours
Water impermeability W6
Maximum aggregate size in dry mix up to 3,2 mm

Consumption

Estimated calculation based on area and thickness.

Final figures are confirmed by an engineer based on the actual condition of the substrate.
